Automatic Broiler Breeder Farm Equipment For Complete Automatic Poultry House

Automatic Poultry House:

Automatic Poultry Keeping system:

1. Main feeding line

Automatic Broiler Feeding Equipment For Closed Poultry Chicken Farm House Floor Ground System

Main feeding system is a complete set of automatic feeding system, included a material conveying pipe, silo, auger, drive motor and a material level sensor. Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.

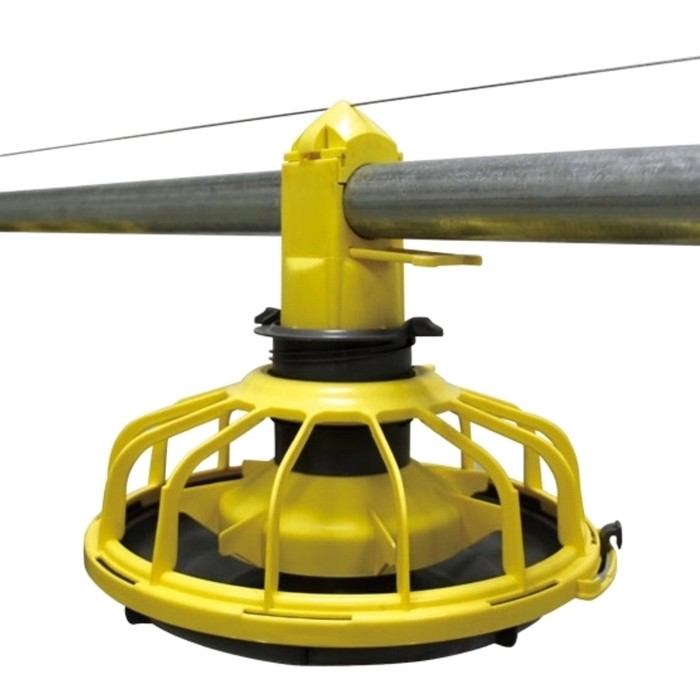

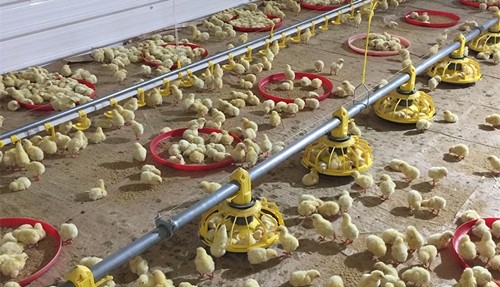

2. Automatic pan feeding line system

Performance parameters of feeding line system

(1) High-quality special driving reduction motor.

(2) V-shaper Bin(with hopper)

Bin volume: 115L, hopper volume: 38L

Material: Hot-DIP galvanized sheet.

(3) Feeding system: Diameter of conveying pipe: Diameter: 45mm

Material: Hot-DIP galvanized sheet pipe with the zinc coating amount of morethan 275 square meter.

Helical spring auger from South Africa feeding capacity: 450kg/h.

(4) Material level sensor from Israel: Time delay range0 to 2 hours

3. Automatic nipple drinking line system
This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

4. Automatic ventilation fan system
This system controls climate conditions, fresh air, humidity and temperature in poultry shed, it is vital for growing birds. This system include Poultry house fan, Cooling pad, Air inlet window

5. Environment control system
This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working m-ode according to the local climate and raising environment

6. Cooling pad system

Installation:Submersible pump being installed under water,keep the water source clean and the ground neat and beautiful.

Water Volume Control:control the volume of water by adjusting the valve,keep the cooling pad drenched evenly after water supplying,make the water flow down along the corrugation of the wet curtain.

Water Quality Control:Filter being installed at the water source can keep the supplied water clean.The special substance being applied on the surface of wet curtain can effectively prevent algaebacteria from breeding on the surface

7. Spraying and disinfecting system
This system effectively cools, humidifies, dedusts and disinfects the hen house(the tem-Perature is quickly reduced by 3-8 degrees centigrade within a few minutes)

System Pictures:
