Automatic Pan Feeding System
Automatic Pan Feeding System For Closed Ground Chicken House
| Final weight | Final weight |
| Birds/pan | 57-91 | 57-85 |
| Density(birds/m²) | 16-20 | 12-16 |
| Max daily feed intake | 170g | 175-220g |
| Product specification |

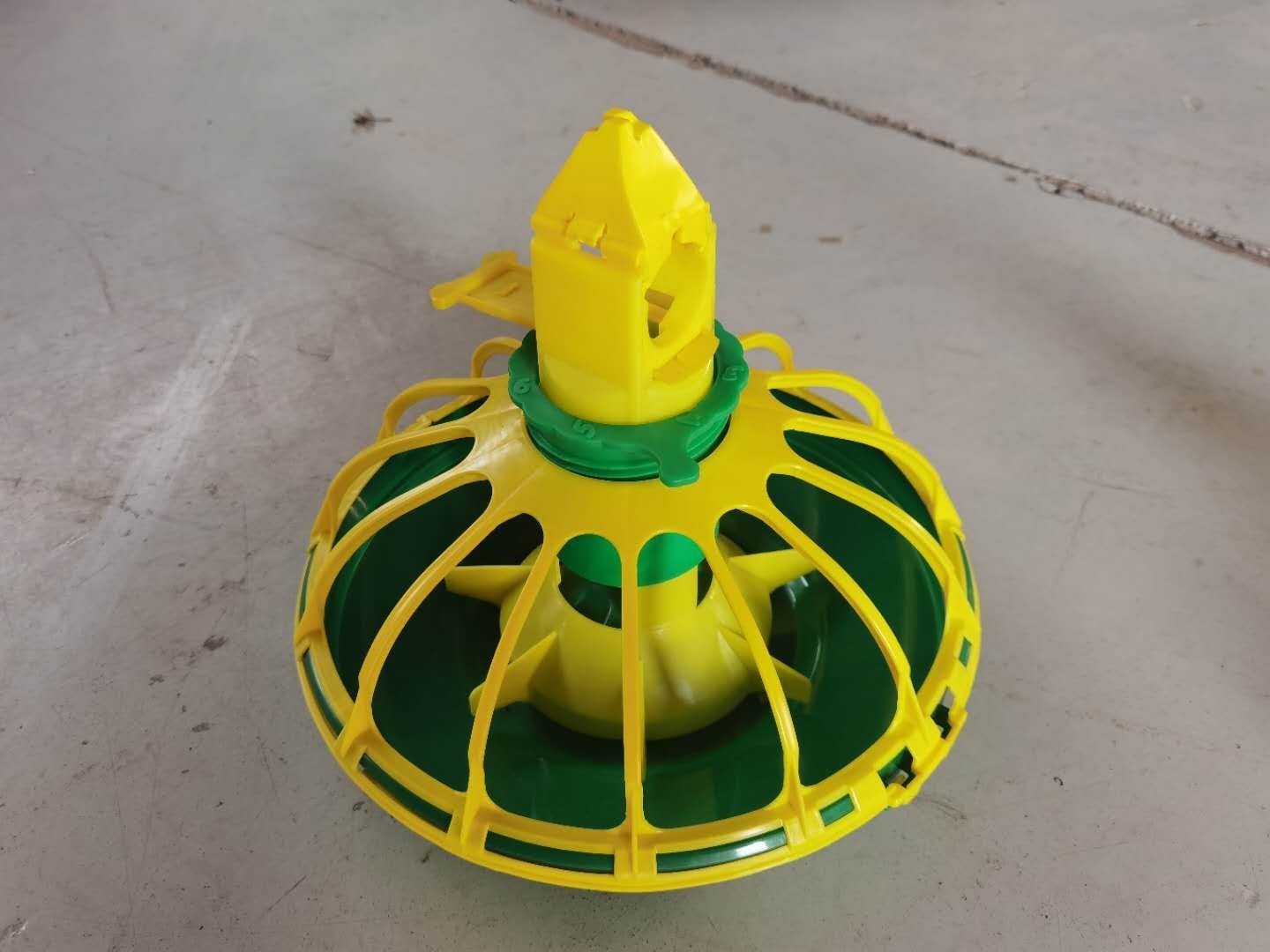

| Feed pan | Diameter | 330mm |
| Material | PP |
| Pan capacity | 300g |
| Number of grill | 14 |
| Grill hole size | 60mm |
| Pipe&auger | Material of pipe | Hot galvanized |
| External diameter of auger | 45mm |
| Distance between feeding pan | 750mm |
| Max feeding length | 150m |
| Drive motor | Drive motor specification | 1.1kw 380 50hz |
| 0.75kw 380v 50hz |
| Delivery capacity | 450kg/h |
Features
1,Ideal raising from brooding to slaughter.Ideal pan height for
chicken.
2,It is feed saving and make sure fresh feed supplying.
3,Flexible and automatic control on feed level.
4,Taiwan brand motor with high quality to ensure stable working
5,Feeding pan material is raw material of PP
System picture
Factory picture
Q&A
Q:How long has your factory been established?
A:Established in 2007.Rich experience in export and product
development.
Q:Which product is your main product?
A:We have the best quality nipple drinker and cups.And we can
provied all equipment about the automatic ground chick house.
Q:If we import from you, can we do personal design?
A:Yes we can do this . We have our own factory and a dedicated
development team. We can give you what you want.
Q:Can you put my logo on your product?
A:Yes, we will make a new mold specially for you. Then you'll get a
new product with your logo.
Q:What are your company's advantage?
A:We have rich experience in import and export and strict quality
control.We can guarantee to provide you with high quality
products.Cargo enough and Fast production
