Automatic Broiler Breeder Female Male Farm Equipment for Poultry House

Automatic Poultry House:

Automatic Poultry Keeping system:

1. Pan Feeding System: Ideal way for whole raising period from brooding to slaughter.

2. Nipple Drinking system: Effective way to supply chicken water and keep the waste dry.
3. Fans and cooling pads system: Keep the poultry house air cool and fresh.

4. Environmental control system: Automatically control the temperature, humidity, light, etc.

5. Fogging system: Regularly disinfecte the poultry house.

6. Heating system: Fuel can be gas or oil. Keep the house warm during winter.

Female Breeder Chain Feeding System:

Driving motor:

use cycloidal-pin wheel reduce device, more stable and reliable convey feed equality, reduce noice than toothed wheel.

Feed trough bracket and connection:

They are liftable. We can adjust their height according different breeding stages. Bracket surface use hot galvanized

process, anti-corrosion, more suitable for poultry house environment.

90 degree corner wheel:

The wheel is after special hardening process, alloy bearing don't need oiling, have good wear resistance and long service

life.

Feed trough:

made of wear-risistant and anti-rust material, have 44mm wide limited food grill, which can separate the hens and roosters

apart effectively, the limited food grill distance can also be customized.

Chain:

imported from South Africa, have strong feed delivery speed, can reach 36m/minute.

Hopper:

We have 260Kg main hopper and 100Kg vice hopper, they are made of high quality galvanized sheet, there is cover plate

between hopper and trough interface, which is easy to adjust the height of feed level and to prevent feed spill.

Coner wheel:

90 degree hgih strength angle wheel, drive gear and corner wheel are made of wear resistant material, and after hgih frequency quenching, high hardness, wear resistance.

Chain: South Africa champion brand chain, the world's best chain, high tensile strength, long service life.

Layout

Male breeders feeder pan:

The main characteristics of our male breeder feed pan:

1). 4pans/3m, feed pan distance :750mm;

2). Feed pan diameter: 360mm;

3). Material:pp---Polypropylene;

4). Feeding capacity: 8-9 birds/pan;

5). With 6 grilles design, there are still intake hole after supplementing male breeders.

6). The fixation clamp can prevent feed pan swinging, so as to keep feed at the center of feed pan.

7). The adjusting ring at the top of feed pan can adjust the feed gears to the optumum position to reduce the waste of feed.

Advantages:

1. Save time and labor, one person is enough for one chicken house;

2. Increasing chicken survival rate;

3. Automatically control your chicken house environment;

4. High quantiy to ensure nonstopping running of your houses;

5. Competitive price.

6. 15-year service life.

Other systems for breeder environment control house

The broiler breeders are the birds that produce the fertile eggs that will become the broiler chickens that are harvested

for meat.

The three main steps and stages in the whole broiler production process are:
• Rearing and managing broiler breeders (the birds that produce eggs for hatching into broiler chicks);
• Fattening of broiler chicks ;
• Marketing and processing of finished broiler birds.

So raising broiler breeders is the first step.

Breeder Feeder Pan:

Accurate metering, can improve the uniformity of the bird remarkably
Screw transport, straight line feeding, reduce equipment breakdown probability
Feed simultaneously, the fed system will fil all the feed cylinder, and then open the flow control unit, the birds get feed at the same time.
Easy to control the feed level, can adjust feed level accurately and save manpower.
The diameter of the feeder pan is 400mm, with 18 spokes, avoid or decrease birds compete and crash

Accurate metering, can improve the uniformity of the bird remarkably
Screw transport, straight line feeding, reduce equipment breakdown probability
Feed simultaneously, the fed system will fil all the feed cylinder, and then open the flow control unit, the birds get feed at the same time.
Easy to control the feed level, can adjust feed level accurately and save manpower.
The diameter of the feeder pan is 400mm, with 18 spokes, avoid or decrease birds compete and crash

Patented plastic scraper chain feeding system for female breeder

1.To obtain a national invention patent, patent number: ZL201210510242.6

2.Equipment in operation, if a failure to achieve automatic alarm and stop, protect the system from damage.

3.Fast Feed conveying speed, significantly reduce the feed intake differences, improve the uniformity of flocks.

4.As the scraper is a plastic product, in the feeding process, almost no wear galvanized chicken layer, can significantly improve the service life of equipment.

5.Due to the unique structure of the reason, chain scraper maintenance is extremely simple, one operation, a few minutes to complete.

6.New chicken scraper chain conveyor feeder Since its inception, after many poultry farms using practise approved that: the advantages are very prominent, can completely replace or eliminate the traditional chain plate feeding system.

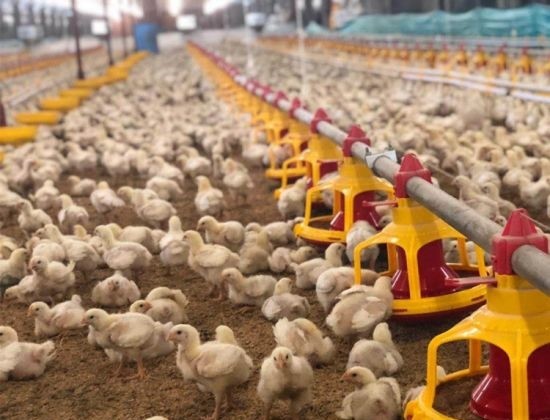

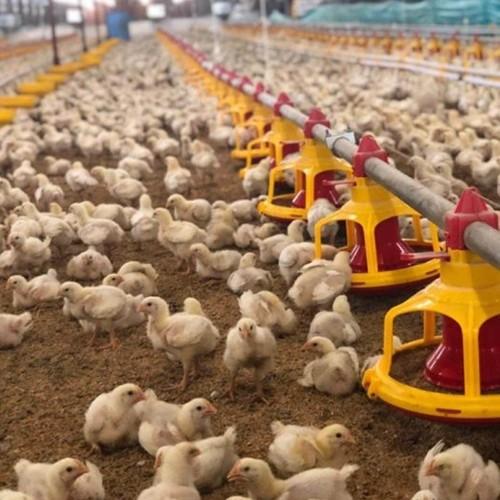

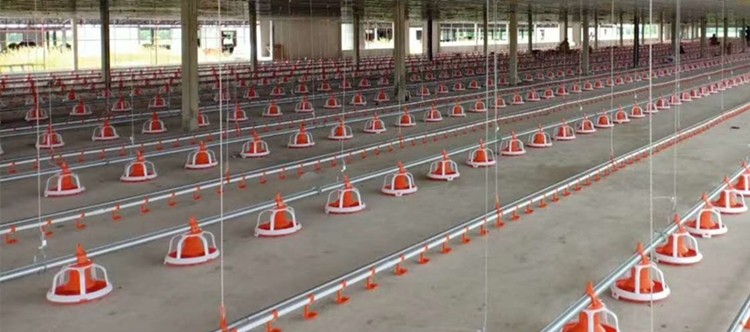

System Pictures:

Contact:

Jing Yang

Mob/whatsapp/wechat: 0086 18830728667

Email: Jing@xqdmachine.com

Web: www.xqdmachine.com

Established in 2007, located Cangzhou, Hebei, China, we Xingqida, have gained huge recognition in the industry as a prominent Manufacturer and Exporter of a superior quality of Poultry Nipple Drinking and Pan Feeding Equipment.

We satisfy all of these poultry equipment requirements in an ideal way – offering a wide range for broilers, layers, breeders, pullets, as well as ducks and geese. Our product range includes: Nipple drinkers, Drip cups, Pressure regulators, Cable winches, PVC pipes, Feeding pans and other poultry drinking and feeding related accessories.

The aim of Xingqida is to continuously upgrade the technique and equipments to help clients achieve the best productivity.
